DARDO

CARBON MONOCOQUE UD

Picture is for illustration purpose only. For all specifications and fittings, consult your dealer.

SIZE

XXS – XS – S – M – L – XL – XXL

Provided with spare hanger

WEIGHT

990 gr

Carbon, raw frame weight, size M

395 gr

Carbon, raw fork weight

230 gr

Carbon, raw seat post weight

AEROFRAME

Frame designed and formulated to have an aerodynamic profile that reduces to the maximum air resistance.

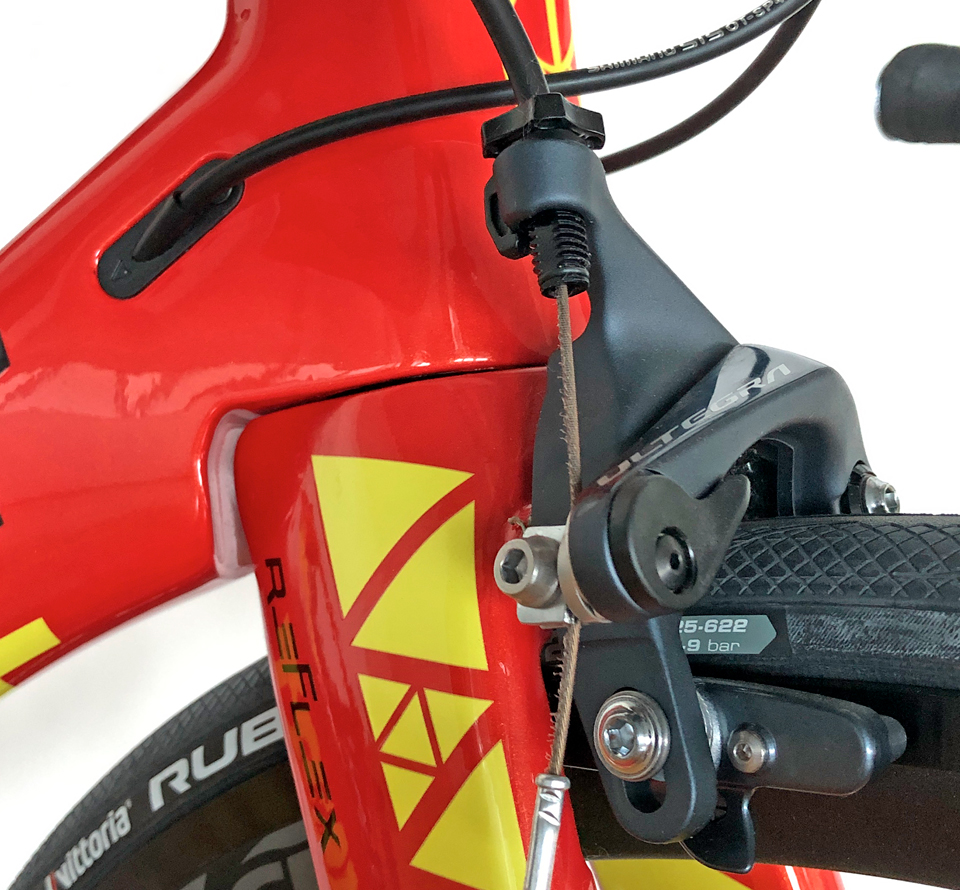

REFLEX FORK

A brand new shaped fork which provides the best stiffness, torsion and resilience performances.

INTEGRATED SEAT CLAMP

A “semi-integrated” seat with oval profile and “integrated” neck in the line of the horizontal tube. The unique fixing system of the seat allows the frame to resemble a typical frame with integrated seat but maintain all the qualities of a normal seat that can be repositioned several times.

HYBRID FRAME FOR BOTH ELECTRONIC AND MECHANICAL GROUPSET

A single frame that mounts both a mechanical and electronic group thanks to the new interchangeable boxes.

Scroll the table →
GEOMETRYXXSXSSMLXLXXL
ASEAT TUBE LENGTH (mm)410450480500520550580
RCCHAIN STAY LENGTH (mm)403403408408408412412
CHEAD TUBE ANGLE (°)70,571,572,57373,2573,573,75
DHEAD TUBE LENGTH (mm)105120130145165185210
ESEAT TUBE ANGLE (°)75,574,57473,573,257372,5
FTOP TUBE HORIZONTAL (mm)495520535550565580595
FCFRONT CENTRE (mm)570578580585595605611
WBWHEELBASE (mm)96397197798399310071013
DROPBOTTOM BRACKET DROP (mm)70707070707070
STACKSTACK (mm)501519531548567587613
REACHREACH (mm)365376383388394400402
