cross/gravel alloy TI190
cross/gravel alloy disc
shimano grx812 11 speed
shimano rx400 1 x 11
shimano rx400 with 160mm rotors
alloy disc 32h
prowheel alloy blk 40T
vittoria terreno mix 700×33
blk alloy
black alloy
shimano deore 5100 11-42 11 speed
selle italia model x
blk alloy
22ME190

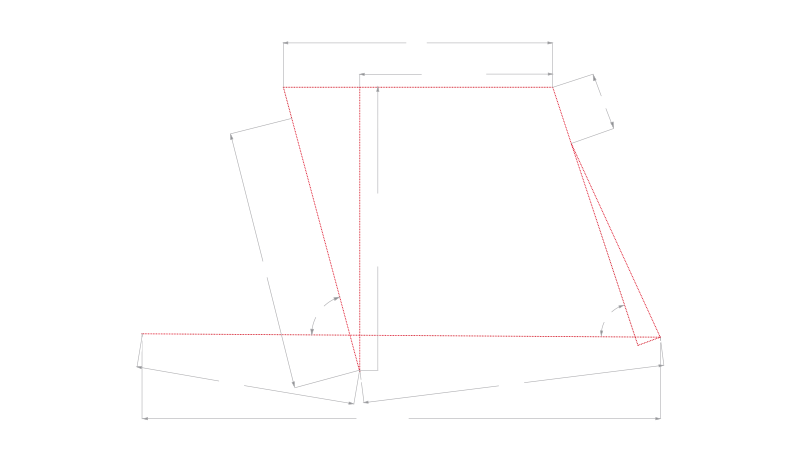

| GEOMETRY | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 490 | 510 | 550 | 580 | 610 |
| RC | Chain Stay Length (mm) | 430 | 430 | 430 | 430 | 430 |
| C | Head Tube Angle (°) | 71° | 71° | 72° | 72° | 72° |
| D | Head Tube Length (mm) | 105 | 115 | 130 | 145 | 155 |
| E | Seat Tube Angle (°) | 75° | 74° | 74° | 73° | 73° |
| F | Top Tube Horizontal (mm) | 510 | 525 | 540 | 555 | 570 |
| FC | Front Centre (mm) | 579 | 590 | 595 | 595 | 610 |
| WB | WheelBase (mm) | 999 | 1009 | 1015 | 1015 | 1030 |
| DROP | Bottom Bracket Drop (mm) | 71 | 71 | 71 | 71 | 71 |
| STACK | Stack (mm) | 546 | 555 | 571 | 587 | 587 |
| REACH | Reach (mm) | 365 | 371 | 376 | 375 | 387 |
