XXS – XS – S – M – L – XL – XXL
Provided with spare hanger
Carbon, raw frame weight, size M
Carbon, raw fork weight

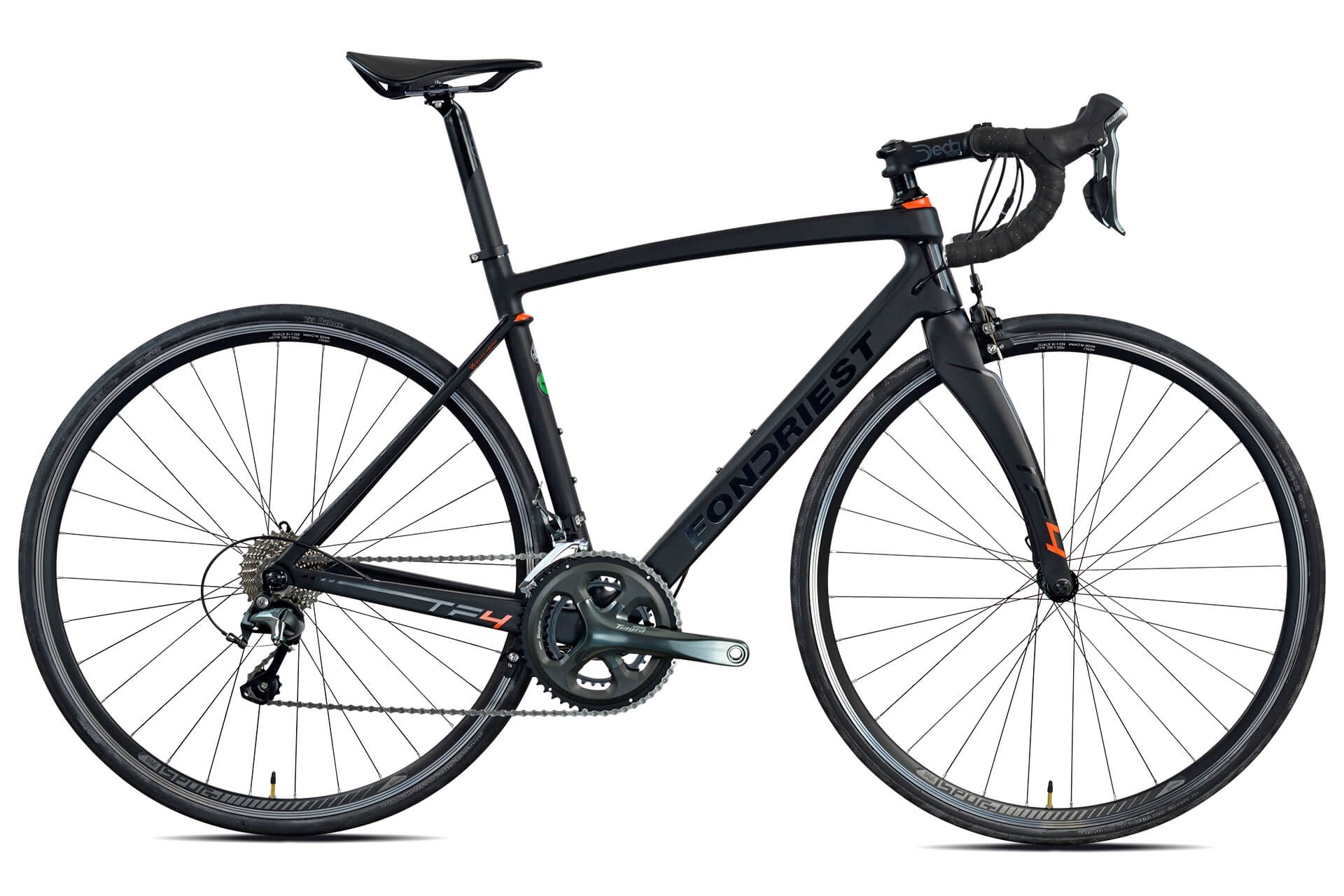

tf4 carbon monocoque with custom lay up, dual pivot brakes

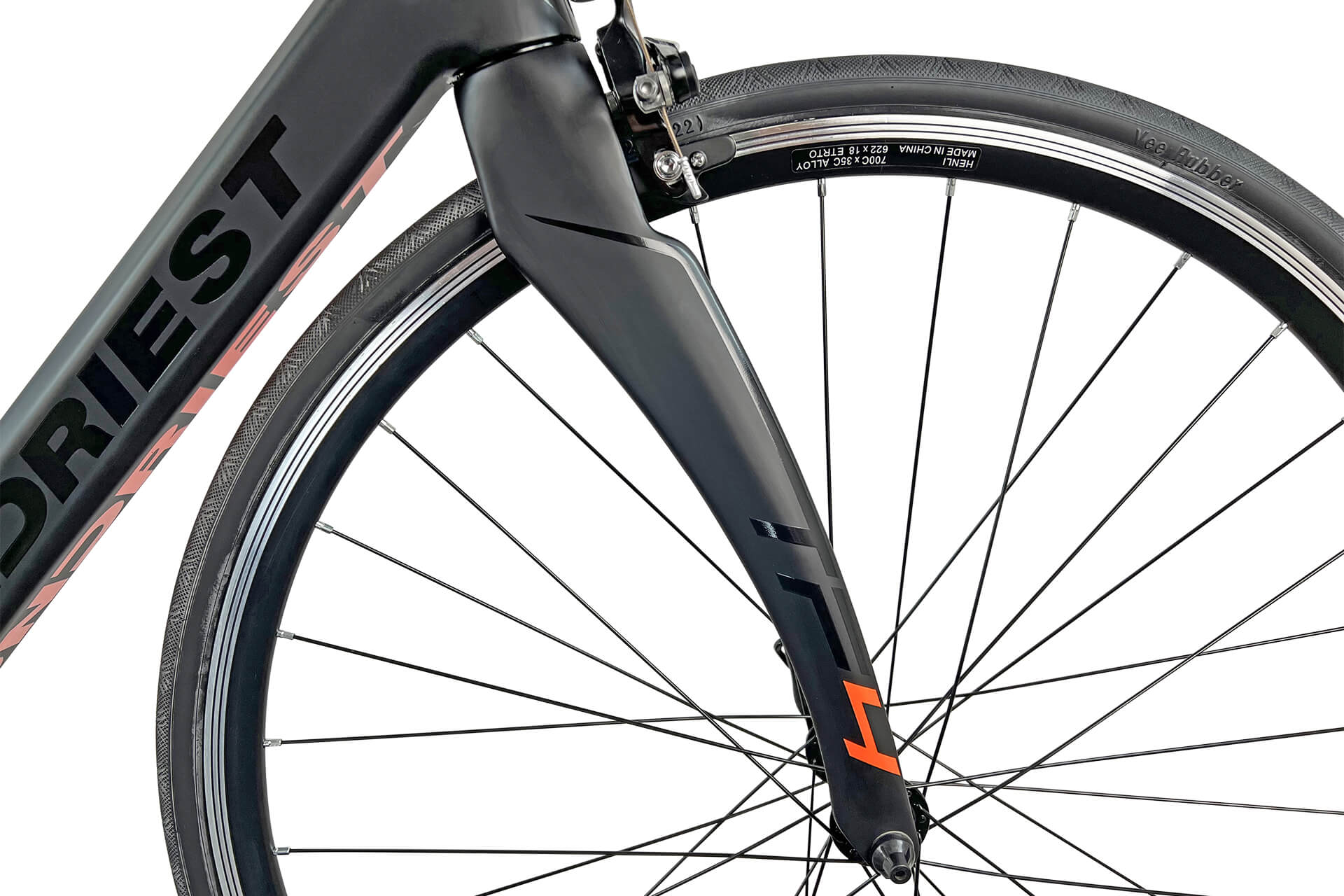

carbon with dual pivot brakes
shimano tiagra 10 speed
shimano tiagra 10 speed

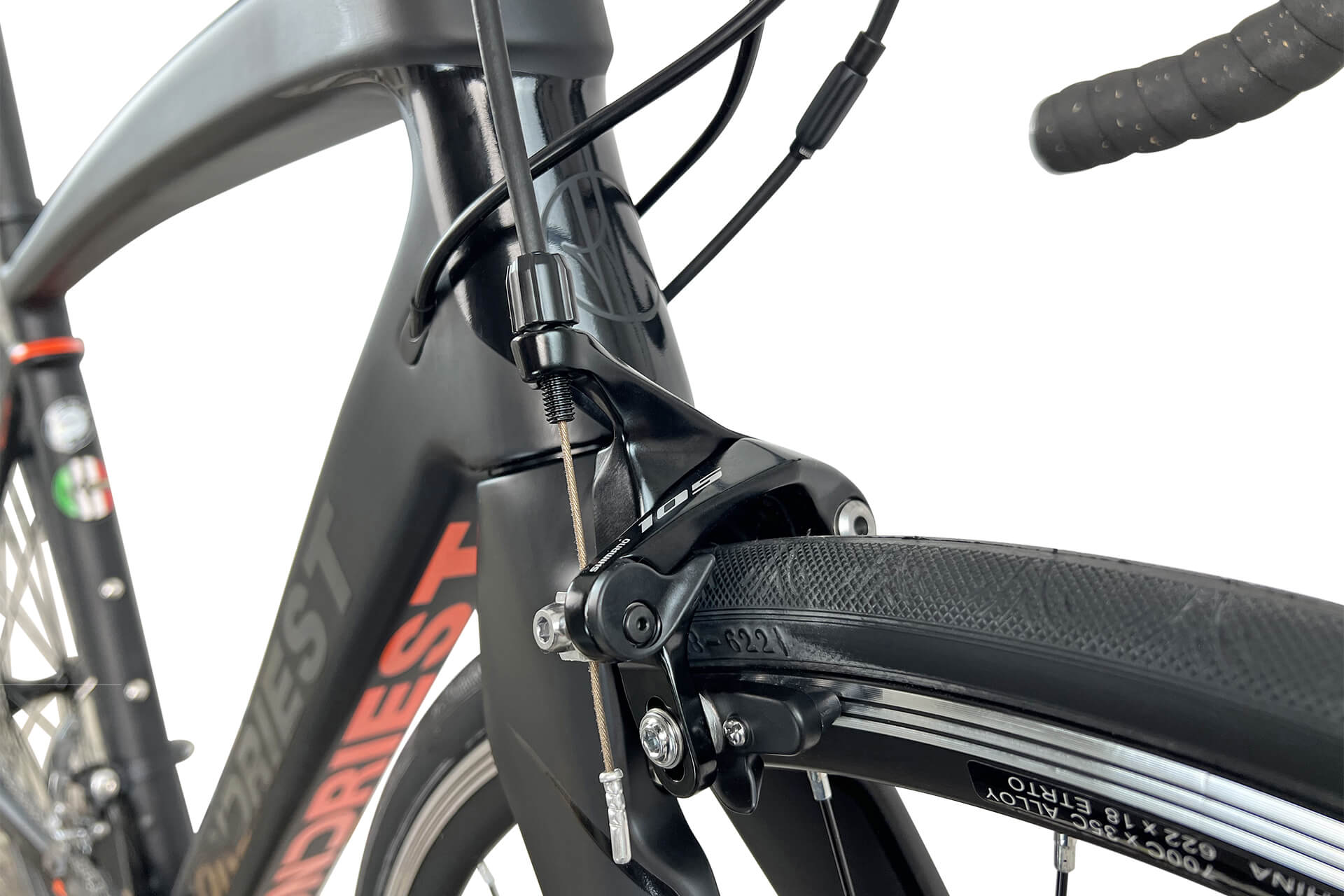

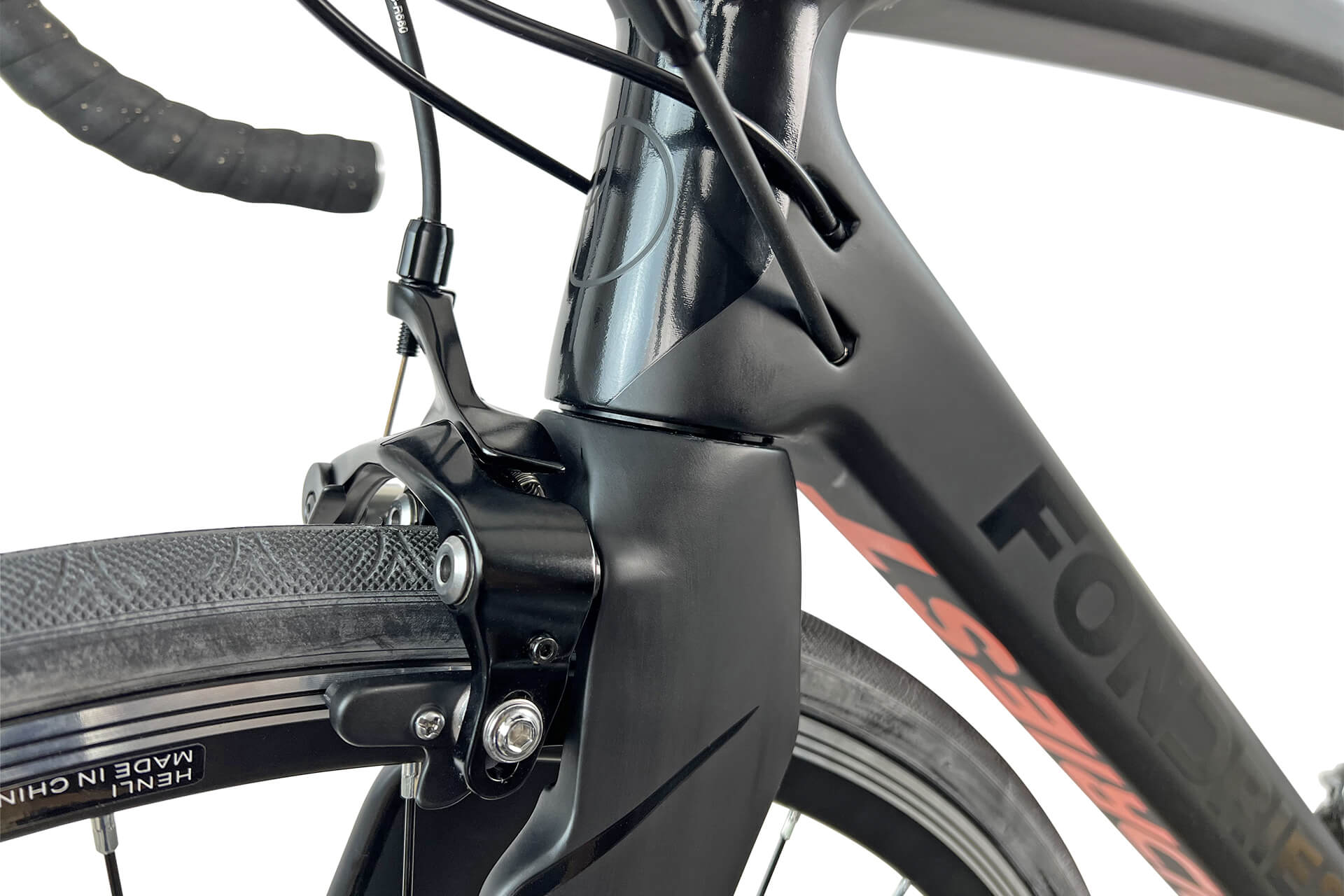

shimano dual pivot
alloy blk 32h

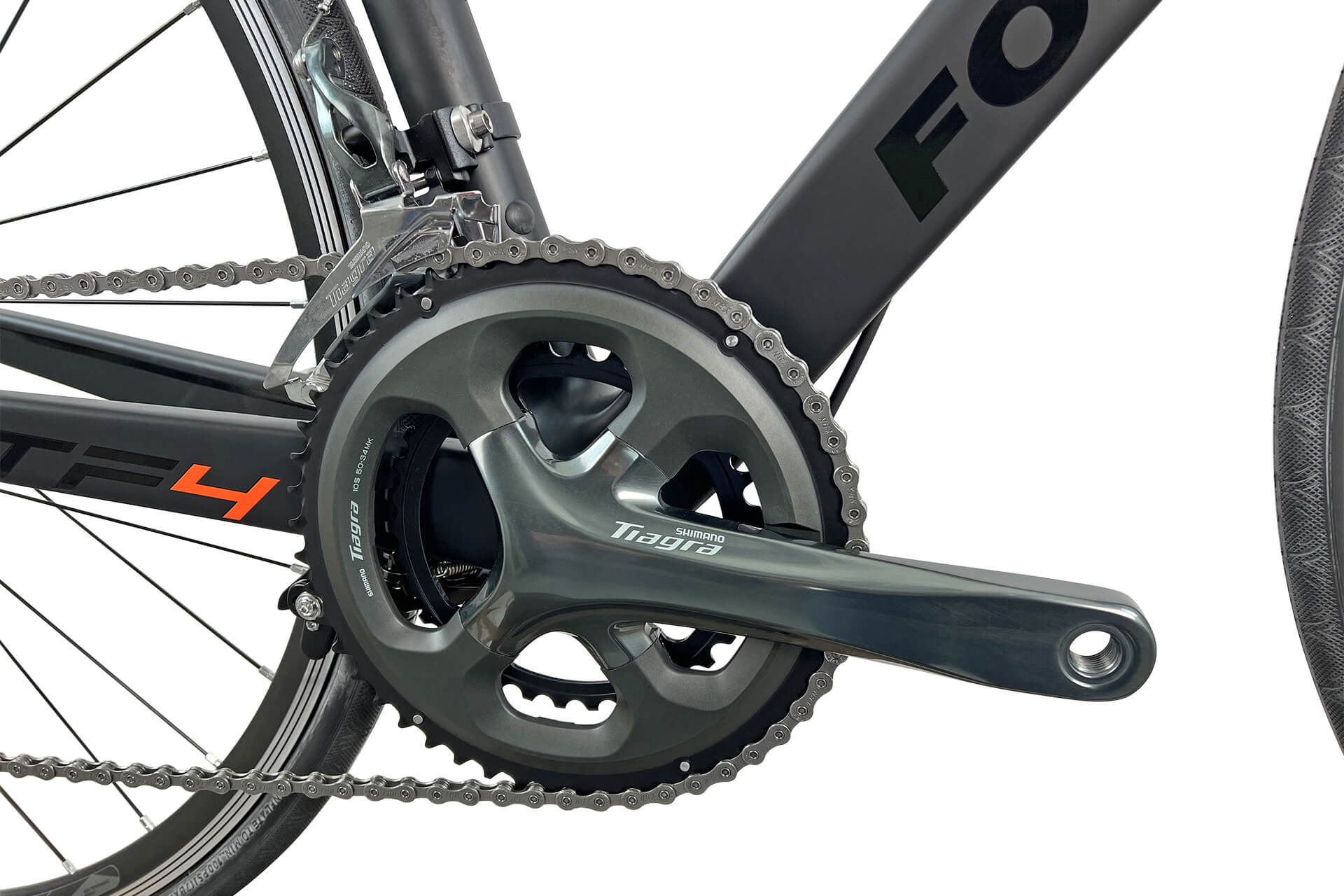

shimano tiagra 50-34
700×28 mm blk

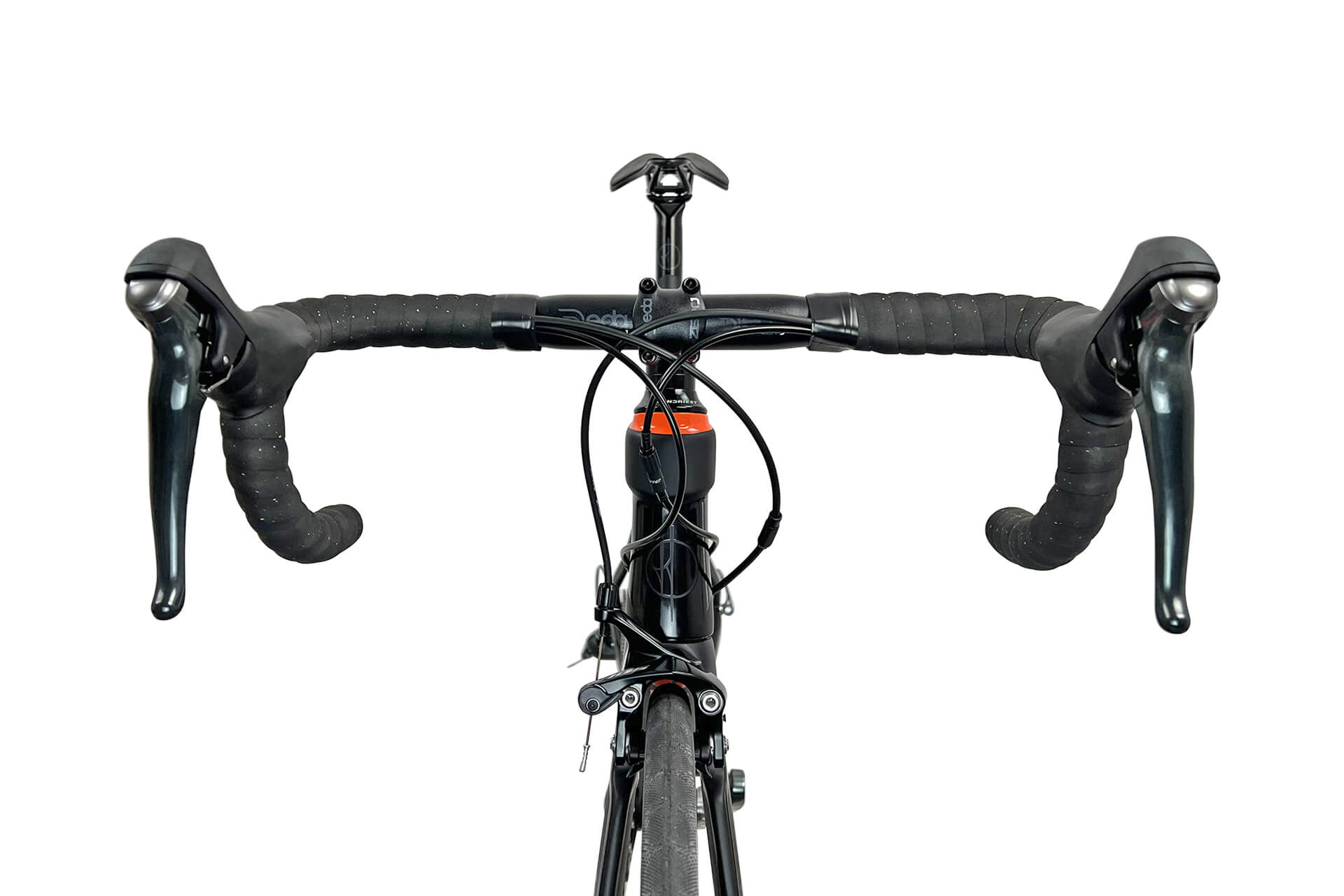

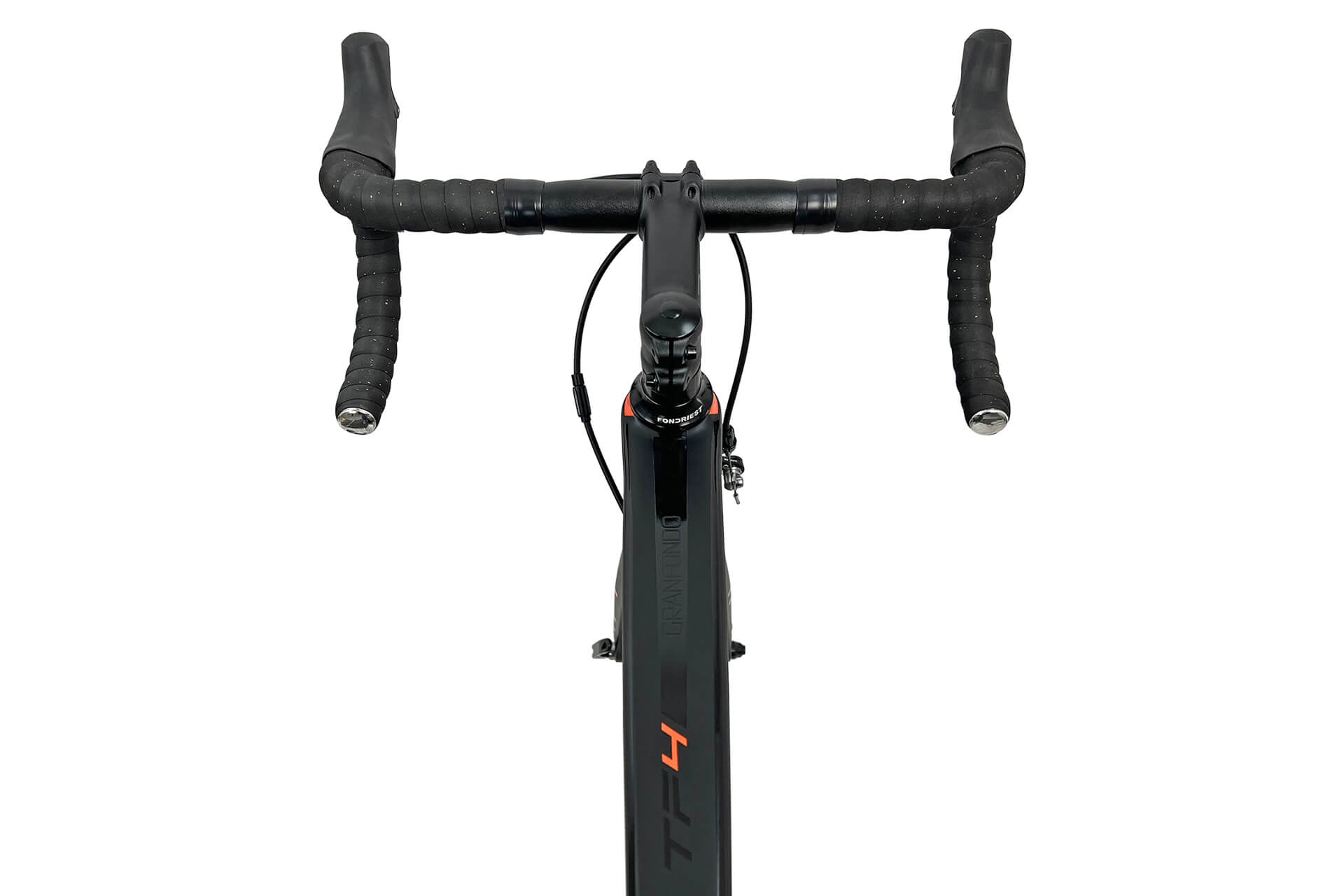

deda zero series
deda zero series
shimano hg50 11-28 10 speed
selle italia model x
blk alloy
23FHT

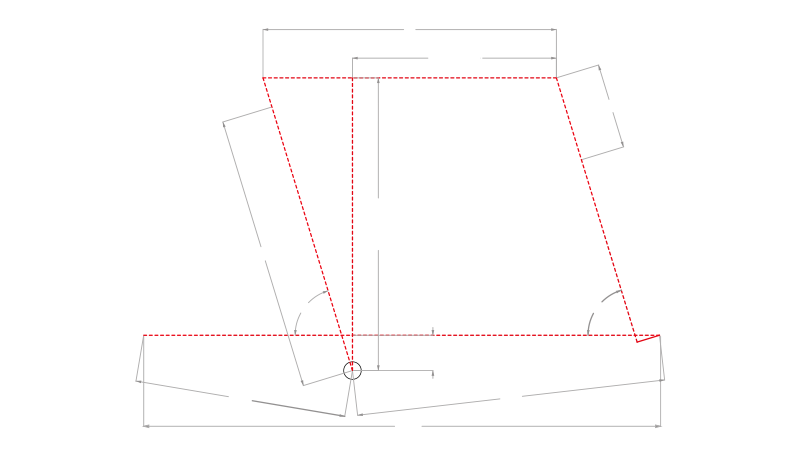

| GEOMETRY | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 440 | 470 | 500 | 530 | 560 |
| RC | Chain Stay Length (mm) | 405 | 405 | 408 | 408 | 410 |
| C | Head Tube Angle (°) | 71° | 72° | 73° | 73° | 73° |
| D | Head Tube Length (mm) | 115 | 125 | 145 | 165 | 180 |
| E | Seat Tube Angle (°) | 75° | 74° | 73,5° | 73° | 73° |
| F | Top Tube Horizontal (mm) | 510 | 530 | 545 | 565 | 576 |
| FC | Front Centre (mm) | 578 | 582 | 585 | 596 | 604 |
| WB | WheelBase (mm) | 974 | 977 | 982 | 994 | 1003 |
| DROP | Bottom Bracket Drop (mm) | 68 | 68 | 68 | 68 | 68 |
| STACK | Stack (mm) | 509 | 522 | 545 | 564 | 578 |
| REACH | Reach (mm) | 373,5 | 383 | 388 | 394 | 397 |
